PRODUCT DETAIL:
Windlass or feed wheel tensioners for polypropylene strapping are used with either buckles or a sealer and seals in manual poly strapping applications, efficiently securing flat or irregular shaped product or packages.
Parts & service available on all strapping tools and machines.
USING A TENSIONER:

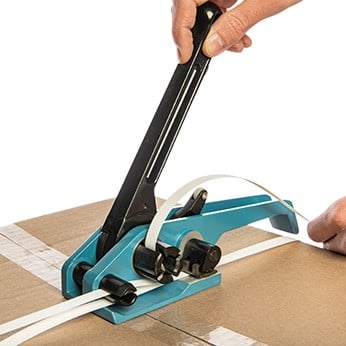

How to use tensioners (with cutter) and sealers for polypropylene strapping;
First: tension your strap:
- Place strap around the item or items to be strapped, bring the two ends together, ensuring an overlap of approximately six inches.
- Squeeze the tensioner handle to open the tool's holding gripper and thread the free end of the strap from the front to the back end of the tool, through the holding gripper, release pressure on the handle.
- Next take the strap coming from the coil, thread it through the cutter and tension wheel, lift handle back & forth until strap reaches desired tension.
Second: seal your strap: - Place seal in front of the tensioner on overlapped, tensioned strapping.
- Open sealer, place on seal, crimp the seal by closing the sealer completely to form a secure seal.
Third: cut the excess strap: - Simply cut off the excess piece of strap by pushing the tensioner handle in downward motion.
- Twist the tool to the right to remove.
TENSIONERS FOR POLYPROPYLENE STRAPPING SPECIFICATIONS TABLE:
PRODUCT | DESCRIPTION | USE WITH | UNIT |
---|---|---|---|

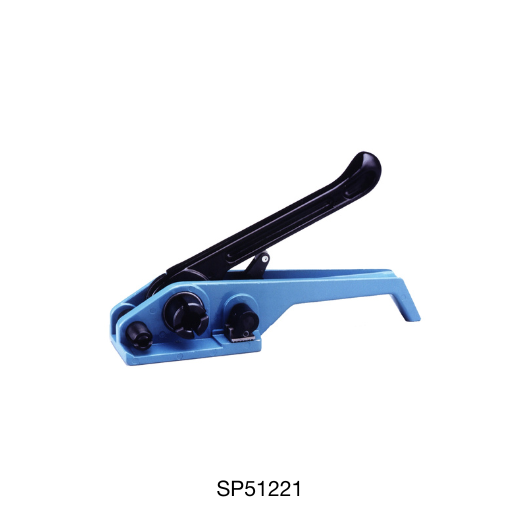

SP51221 |
Regular Duty Tensioner |
3/8-3/4" P/P Strap |
1 |

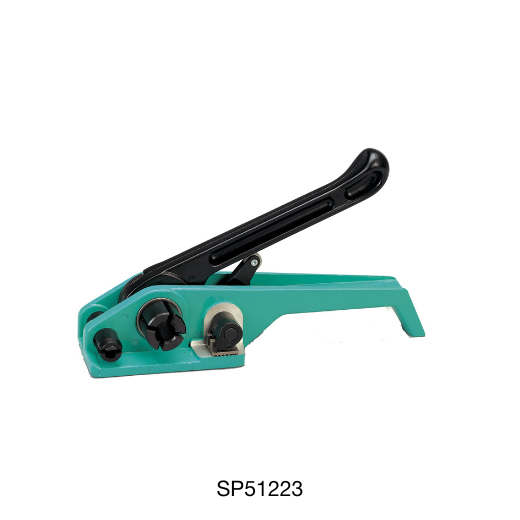

SP51223 |
Heavy Duty Tensioner |
3/8-3/4" P/P & PET Strap |
1 |

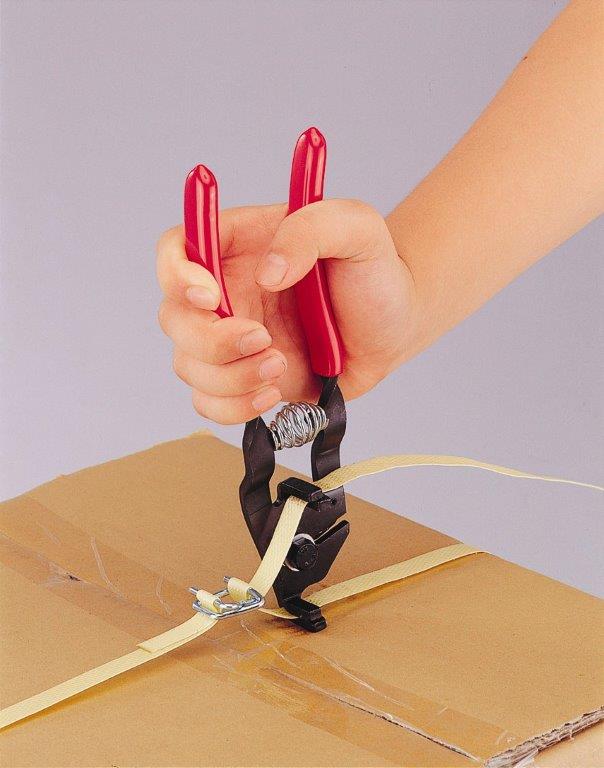

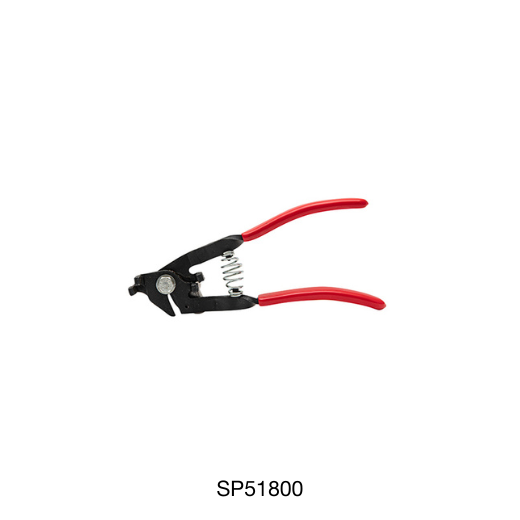

SP51800 |
Twin Grip Tensioners/Cutter with Buckles |
3/8-1/2" P/P Strap |
1 |
Product description and specifications content is accurate and true to the best of SmartShield Packaging's knowledge.
Style, colour or size in some pictures may not depict product exactly.
