COMBINATION TOOLS FOR STEEL STRAPPING

Optimize the safety and efficiency of your strapping process with a manual combination tool for steel strapping, conveniently offering the tensioner, sealer and cutter all in one.

M129 - Product - Accordion

PRODUCT DETAIL:

Why use a Combination Tool?
Sealess combination tools for steel strapping tension, seal & cut all in one, eliminating the cost of seals and offering a more efficient process with 3 tools combined in one. Ideal for both indoor and outdoor operation. With a rugged and reliable, light weight design it is the perfect option for sealing steel strapping to flat packages including crates, cases, pallets and more.

Parts & service available on all strapping tools and machines.

How to use combination tools for steel strapping:
Wrap the strap around your product first going over the top, and then come back underneath, overlap the strap. Open the tool and put the strap under the tension wheel cutter and sealer, leave at least 4” of strap in front of the tool. Use the tension handle to bring the strap to the required tension, then push the sealing handle forward to seal and cut the strap.

130 - Specifications Table

STEEL STRAPPING COMBINATION TOOLS SPECIFICATIONS TABLE:

PRODUCT	DESCRIPTION	USE WITH	UNIT

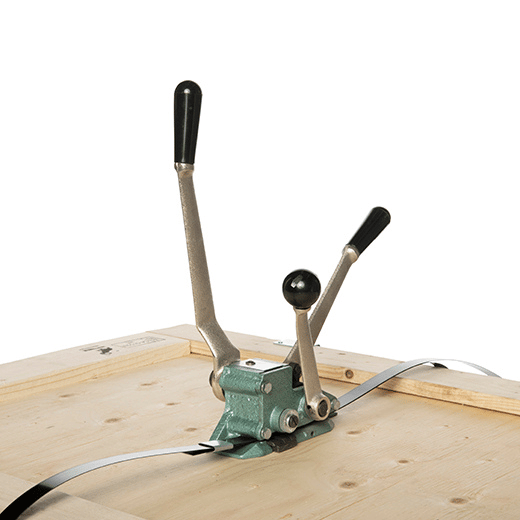

SX32000	Economic Manual Combination Tool Efficiently tensions, seals and cuts Colour: Green/Silver	3/8-5/8" Regular duty steel strap Strap thickness: up to 0.023" No seals required	1

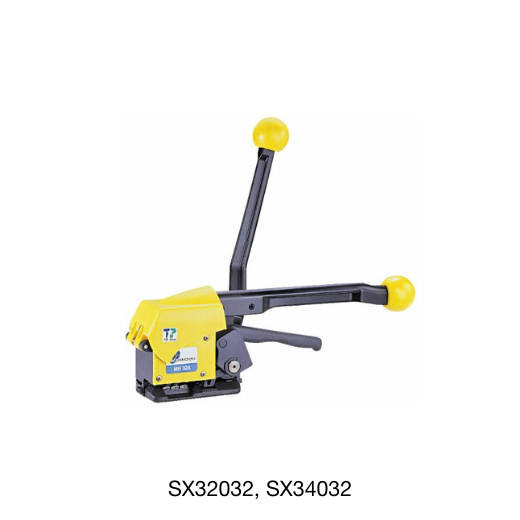

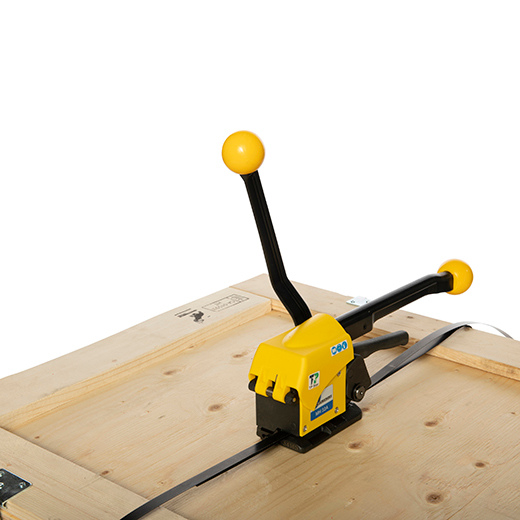

SX32032	Standard Sealless Combination Tool Approximately 150lbs tension force Colour: Yellow/Black	1/2" Regular duty steel strap Strap thickness: up to 0.023" No seals required	1
SX34032	Standard Sealless Combination Tool Approximately 150lbs tension force Colour: Yellow/Black	3/4"-5/8" Regular duty steel strap Strap thickness: up to 0.023" No seals required *Adjustable to 5/8" width strap, no parts required	1

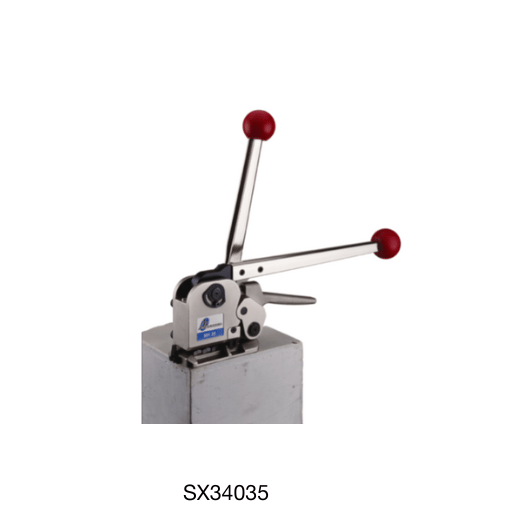

SX34035	Heavy Duty Sealless Combination Tool Approximately 200lbs tension force Colour: Silver/Red	3/4"-5/8" Regular duty steel strap Strap thickness: up to 0.031" No seals required *Adjustable to 5/8" width strap, no parts required	1

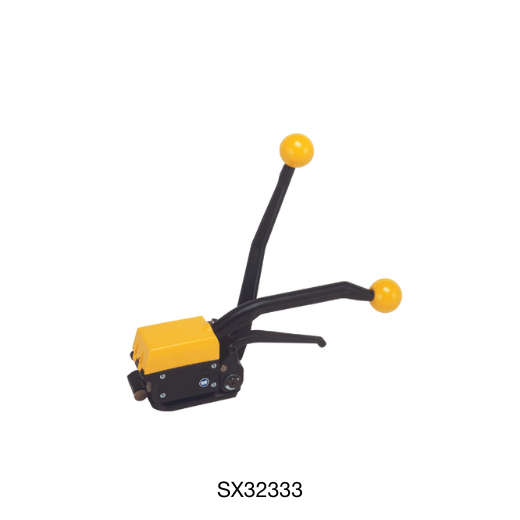

SX32333	Regular Duty Sealless Combination Tool Approximately 175lbs tension force Colour: Yellow/Black	1/2"-3/4" Regular duty steel strap Strap thickness: 0.015-0.023" No seals required	1

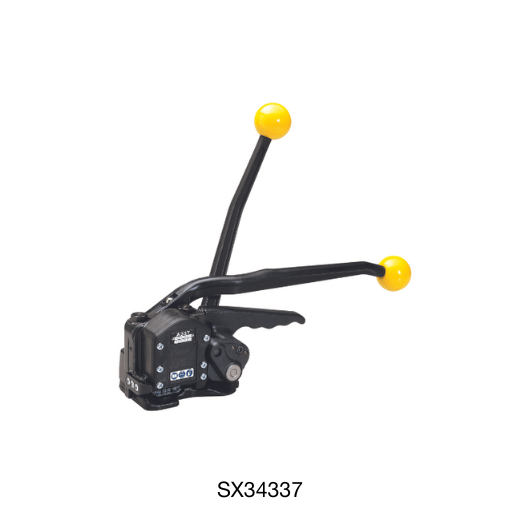

SX34337	Heavy Duty Sealless Combination Tool Approximately 250lbs tension force Colour: Black	1/2"-3/4" high tensile steel strap Strap thickness: 0.015-0.025" No seals required	1

M123 - Content with logos

RELATED ITEMS

Steel Strapping

Edge Protection

Pallets

Product description and specifications content is accurate and true to the best of SmartShield Packaging's knowledge.
Style, colour or size in some pictures may not depict product exactly.
